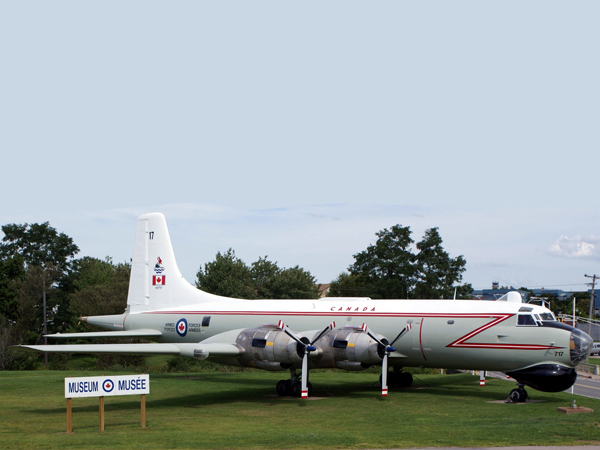

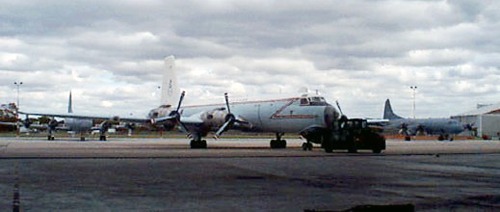

This site is located at the entrance to the Greenwood Military Aviation Museum where it will join the Lancaster and Neptune recently moved there.

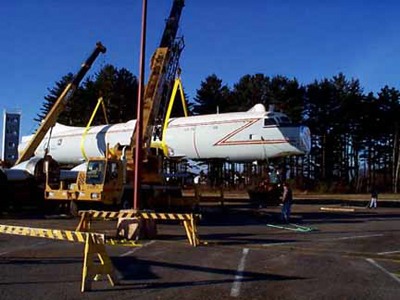

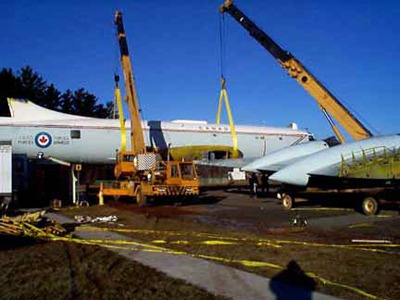

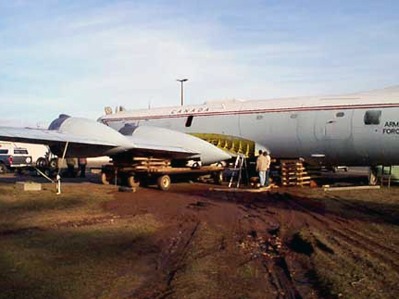

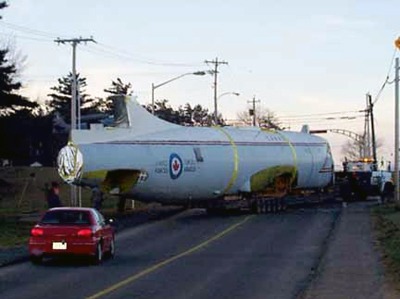

In December of 2000 the Argus was transported to the Museum Air Parkand reassembly began in January 2001

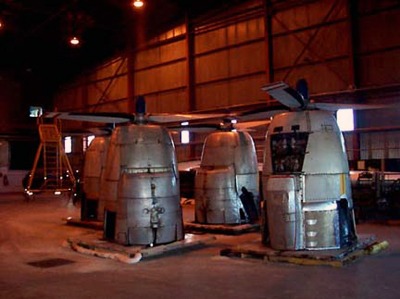

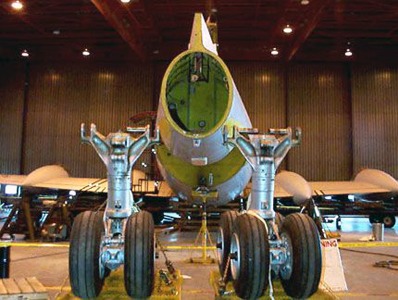

For the next 2 months Argus 717 was dismantled for transport to the Museum Air Park.
Argus CP-107 |
|||||||||||||
| Manufacturer: | Canadair | ||||||||||||
| Overall Length: | feet | 5.75 |
inches | 40.4 |
metres | ||||||||
| Wing Span: | 142 |
feet | 3.6 |
inches | 43.4 |
metres | |||||||
| Height (tip of tail): | 40 |
feet | 9.0 |
inches | 12.4 |
metres | |||||||
| All-Up Weight: | 157, 000 |
pounds | 71, 215 |
kilograms | |||||||||
| Empty Weight: | pounds | kilograms | |||||||||||
| Fuel Load: | 47, 808 |
pounds | 21, 686 |
kilograms | |||||||||
| Type: | 115/145 Avgas | ||||||||||||
| Maximum - Speed | 317 |
mph | 510 |
Km/h | 275 |
knots | |||||||
| Patrol - Speed | 196 |
mph | 315 |
Km/h | 170 |
knots | |||||||
| Endurance: | Hours cruise | 18 |
Hours patrol | ||||||||||
| Range: | Miles | Kilometres | Nautical | ||||||||||
| Ceiling: | feet | metres | |||||||||||
| Engine: | 4- Wright Cyclone R-3350 18 cylinder radial
engines, each 3400 hp, turning 3-bladed propellers. Provision for water-methanol
Anti-Detonant Injection (ADI) on take-off raised the Wet Power hp (wet power
= full power with ADI) to
3700hp.
Take Off Power (full power without ADI) was called Dry Power, 3400hp. Maximum Except Take Off (METO) power was 2600rpm, 153 torque, and was used as climb power, high speed dash, etc., time limited to 30 minutes. Three Power Recovery Turbines (PRTs) on each engine scavenged power from engine exhaust. |
||||||||||||
| History: | The Argus was built under licence by Canadair, and was an adaptation of the British Bristol Britannia, a turboprop airliner of the 1950s. Piston engines were installed in place of Britannia's turboprops to improve endurance at low altitudes. | ||||||||||||
| Canadian Purchase: | The 33 originally purchased Argus aircraft were all stationed at CFB Greenwood, NS, with 404, 405, 449 Squadrons, No.2 Maritime OTU detachment and the Argus Conversion Unit. Shortly thereafter, 407 Sqn Comox, BC, 415 Sqn and Maritime Proving and Evaluation Unit, Summerside, PEI, joined the Argus family. | ||||||||||||
| Greenwood Service: | May 1958 to November 1980 | ||||||||||||
| Crew: | 3 pilots, 2 flight engineers, 4 navigators and 6 Airborne Electronic Sensor Operators. Note- Tactical crew make-up varied during Argus service. (Final configuration shown.) | ||||||||||||
| Equipment: | Mk I - APS-20 radar. Mk II - ASV21 radar. Both models had searchlight, Electronic Support Measures (ESM), Magnetic Anomaly Detector (MAD), Exhaust Trail Indicator (ETI or ASH), active and passive acoustics, Julie, Jezebel | ||||||||||||
| Weapons: | Torpedoes, bombs, depth charges, mines | ||||||||||||
| Remarks: | Record endurance 31 hours 01 minutes. Designed to fly 1000 miles (1, 609 km), remain on-station 8 hours, return home and have enough fuel remaining to divert 500 miles to an alternate airfield if required to. | ||||||||||||
| References: | "The History of CFB Greenwood, 1942-1992", Craig Kelman and Associates Ltd. | ||||||||||||
| An empty field indicates either that the information does not apply to that airframe or is yet unavailable. Feel free to drop us a line to help us fill in any blanks or correct errors. Several sources may list different specifications based on different versions of the airframe. We have tried to use the statistics that reflect the aircraft as flown in Greenwood. All conversions among units have been rounded and are approximate values. | |||||||||||||

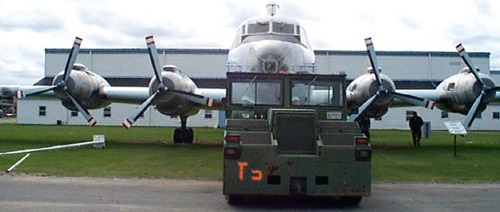

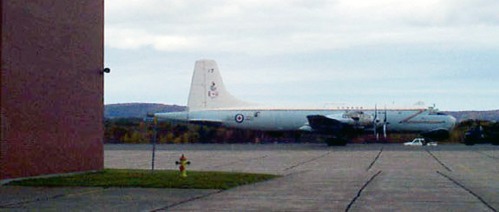

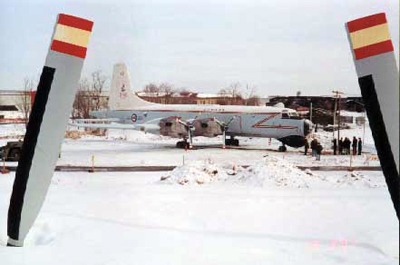

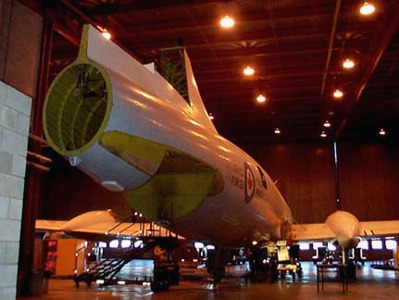

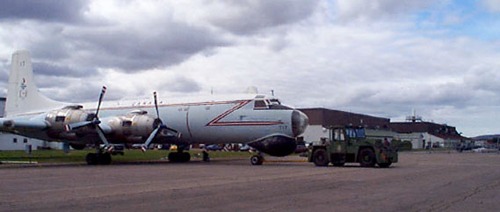

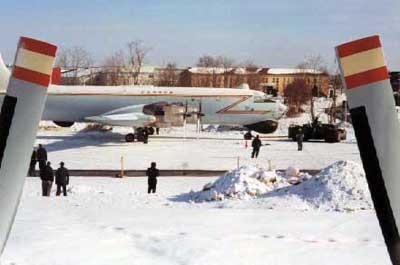

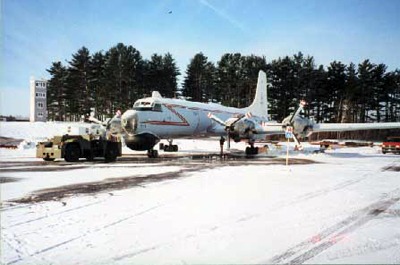

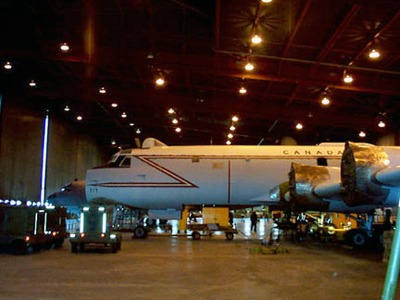

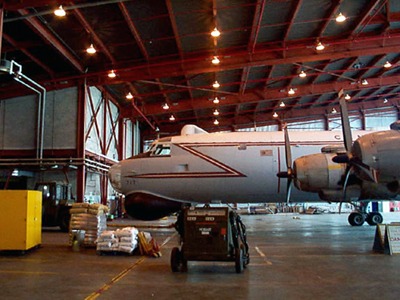

Argus 10717 was assigned to the 2 Maritime Operational Training Unit in Greenwood on 17 June 1958 and was struck off strength on 5 March 1980 to be a permanent monument at Greenwood. It was placed in front of the old gym near the flightline until 16 October 2000 when it was lowered of its gear stands and towed to 11 Hangar to be dismantled.
